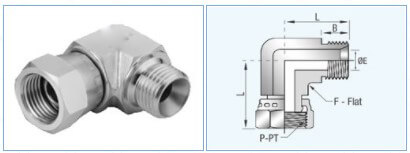

Swivel Male Elbow
Swivel Male Elbow
| Part No | Pipe Size | Dimensions | ||||
| P-PT, BSPP | L | L1 | F | B | E | |
| VE-2G-SWL-SS | 1/8 | 16.60 | 22.00 | 11.00 | 8.00 | 3.50 |
| VE-4G-SWL-SS | 1/4 | 27.80 | 31.20 | 19.00 | 11.00 | 4.70 |
| VE-6G-SWL-SS | 3/8 | 31.70 | 36.20 | 22.00 | 12.00 | 7.90 |
| VE-8G-SWL-SS | 1/2 | 37.00 | 41.00 | 27.00 | 14.00 | 11.10 |
| VE-10G-SWL-SS | 5/8 | 39.00 | 41.60 | 27.00 | 16.00 | 14.30 |
| VE-12G-SWL-SS | 3/4 | 41.60 | 45.30 | 33.00 | 16.00 | 16.70 |
| VE-16G-SWL-SS | 1 | 49.70 | 53.90 | 41.00 | 19.00 | 22.20 |
| VE-20G-SWL-SS | 1 1/4 | 54.40 | 60.00 | 48.00 | 20.00 | 28.60 |
| VE-24G-SWL-SS | 1 1/2 | 53.70 | 63.30 | 48.00 | 22.00 | 33.30 |
