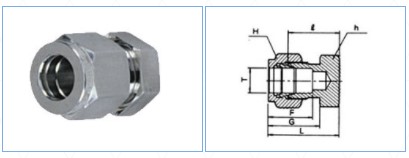

TUBE CAP METRIC

Part No.

Tube O.D.
T mm

h  mm

 H mm
F
G
l
L
VE-M02 2 12 12 12.9 15.3 13.5 20.1
VE-M03 3 12 12 12.9 15.3 13.5 20.1
VE-M04 4 12 12 13.7 16.1 14.7 21.3
VE-M06 6 14 14 15.3 17.7 15.7 23.1
VE-M08 8 15 16 16.2 18.6 17.0 24.5
VE-M10 10 18 19 17.2 19.5 19.0 26.6
VE-M12 12 22 22 22.8 22.0 19.0 29.1
VE-M15 15 24 25 24.4 22.0 19.8 29.9
VE-M16 16 24 25 24.4 22.0 19.8 29.9
VE-M18 18 27 30 24.4 22.0 21.3 31.4
VE-M20 20 30 32 26.0 22.0 23.9 34.0
VE-M22 22 30 32 26.0 22.0 23.9 34.0
VE-M25 25 35 38 31.3 26.5 26.2 38.5
