Union Cross Metric

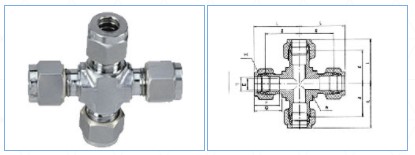

UNION CROSS METRIC
| |
Tube
O.D. |
mm |
h mm |
H mm |
|
|
|
|
| VE-M03 | 3 | 2.4 | 9.5 | 12 | 12.9 | 15.3 | 15.7 | 22.3 |
| VE-M06 | 6 | 4.8 | 12.7 | 14 | 15.3 | 17.7 | 19.6 | 27.0 |
| VE-M08 | 8 | 6.4 | 14.3 | 16 | 16.2 | 18.6 | 21.3 | 28.8 |
| VE-M10 | 10 | 7.9 | 17.5 | 19 | 17.2 | 19.5 | 23.9 | 31.5 |
| VE-M12 | 12 | 9.5 | 20.6 | 22 | 22.8 | 22.0 | 25.9 | 36.0 |
| VE-M16 | 16 | 12.7 | 25.4 | 25 | 24.4 | 22.0 | 28.7 | 38.8 |
| VE-M18 | 18 | 15.1 | 27.0 | 30 | 24.4 | 22.0 | 29.7 | 39.8 |
| VE-M20 | 20 | 15.9 | 31.8 | 32 | 26.0 | 22.0 | 32.5 | 42.6 |
| VE-M25 | 25 | 21.8 | 36.0 | 38 | 31.3 | 22.0 | 36.8 | 49.1 |
