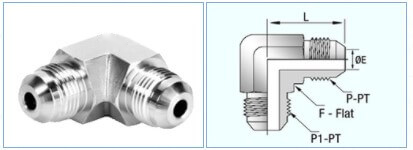

Union Elbows-SAE 070201
Union Elbows-SAE 070201
| Part No | Tube OD (P-PT) | Dimensions | |||
| inch | mm | L | E | F | |
| VE-2J-SS | 1/8 | 3 | 19.60 | 1.60 | 11.10 |
| VE-3J-SS | 3/16 | 4 | 21.10 | 3.20 | 11.10 |
| VE-4J-SS | 1/4 | 6 | 22.60 | 4.40 | 12.70 |
| VE-5J-SS | 5/16 | 8 | 24.10 | 6.00 | 14.30 |
| VE-6J-SS | 3/8 | 10 | 26.90 | 7.50 | 14.30 |
| VE-8J-SS | 1/2 | 12 | 31.80 | 9.90 | 20.60 |
| VE-10J-SS | 5/8 | 16 | 36.80 | 12.30 | 20.60 |
| VE-12J-SS | 3/4 | 18 | 42.20 | 15.50 | 27.00 |
| VE-14J-SS | 7/8 | 22 | 45.70 | 18.30 | 31.80 |
| VE-16J-SS | 1 | 25 | 46.00 | 21.50 | 34.90 |
| VE-20J-SS | 1 1/4 | 32 | 52.30 | 27.50 | 42.90 |
| VE-24J-SS | 1 1/2 | 38 | 59.20 | 33.00 | 50.80 |
| VE-32J-SS | 2 | 50 | 77.70 | 45.00 | 63.50 |
