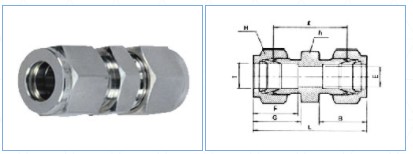

UNION IMPERIAL

Part No.
Tube O.D.
T in
E
Min
h in
H in
F
G
l
L
VE-01 1/16 1.27 5 5/16 8.63 10.91 17.50 25.15
VE-02
1/8
2.28
7/16
7/16
12.70
15.24
22.35
35.56
VE-03
3/16
3.04
7/16
1/2
13.71
16.00
24.13
37.33
VE-04
1/4
4.82
1/2
9/16
15.24
17.78
26.16
40.89
VE-05
5/16
6.35
9/16
5/8
16.25
18.54
28.19
42.92
VE-06
3/8
7.11
5/8
11/16
16.76
19.30
30.22
44.95
VE-08
1/2
10.41
13/16
7/8
22.86
21.84
30.98
51.30
VE-10
5/8
12.70
15/16
1
24.38
21.84
31.75
52.07
VE-12
3/4
15.74
1-1/16
1-1/8
24.38
21.84
33.27
53.59
VE-14
7/8
18.28
1-3/16
1-1/4
25.90
21.84
35.05
55.37
VE-16
1
22.35
1-3/8
1-1/2
31.24
26.41
40.38
64.77
