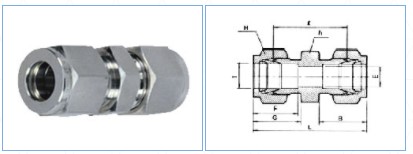

Union Metric

UNION METRIC

Part No.

Tube O.D.
T mm
E
mm

h mm

H mm
F
G
l
L
VE - M 02 2 1.7 12 12 12.9 15.3 22.4 35.6
VE - M 03 3 2.4 12 12 12.9 15.3 22.1 35.3
VE - M 04 4 2.4 12 12 13.7 16.1 24.1 37.3
VE - M 06 6 4.8 14 14 15.3 17.7 26.2 41.0
VE - M 08 8 6.4 15 16 16.2 18.6 28.2 43.2
VE - M 10 10 7.9 18 19 17.2 19.5 31.0 46.2
VE - M 12 12 9.5 22 22 22.8 22.0 31.0 51.2
VE - M 15 15 11.9 24 25 24.4 22.0 31.8 52.0
VE - M 20 20 15.9 30 32 26.0 22.0 34.8 55.0
VE - M 22 22 18.3 30 32 26.0 22.0 34.8 55.0
VE - M 25 25 21.8 35 38 31.3 26.5 40.4 65.0
