Venus Engineers - Instrumentation Tube Fittings


PART NO.	Pipe Size	Dimensions

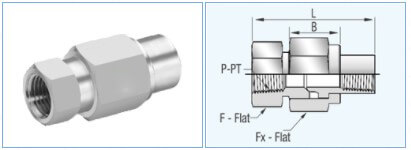

PART NO.	P-PT, NPT	L	F	Fx	B	E
VE-2N-SS	1/8	46.00	23.80	28.60	10.40	6.80
VE-4N-SS	1/4	59.40	30.20	34.90	15.00	9.10
VE-6N-SS	3/8	63.50	33.30	38.10	15.00	13.20
VE-8N-SS	1/2	68.30	41.30	44.50	19.80	15.70
VE-12N-SS	3/4	79.20	47.60	54.00	20.60	22.40
VE-16N-SS	1	90.40	60.30	63.50	25.40	26.20
