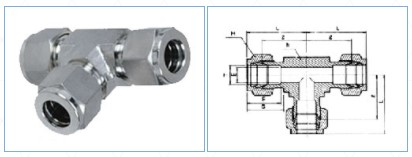

UNION TEE IMPERIAL

Part No.
Tube O.D.
T in
E
Min
h in
H in
F
G
l
L
VE-01 1/16 1.27 3/8 5/16 8.63 10.92 14.00 17.88
VE-02
1/8
2.28
3/8
7/16
12.70
15.24
15.74
22.35
VE-03
3/16
3.04
1/2
1/2
13.71
16.00
17.78
24.38
VE-04
1/4
4.82
1/2
9/16
15.24
17.78
19.55
26.92
VE-05
5/16
6.35
9/16
5/8
16.25
18.54
21.33
28.70
VE-06
3/8
7.11
5/8
11/16
16.76
19.30
23.11
30.48
VE-08
1/2
10.41
13/16
7/8
22.86
21.84
25.90
36.06
VE-10
5/8
12.70
15/16
1
24.38
21.84
28.70
38.80
VE-12
3/4
15.74
1-1/6
1-1/8
24.38
21.84
29.71
39.87
VE-14
7/8
18.28
1-1/4
1-1/4
25.90
21.84
34.54
44.70
VE-16
1
22.35
1-27/64
1-1/2
31.24
26.41
36.83
49.02
