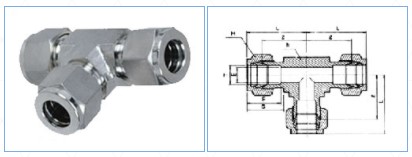

UNION TEE METRIC

Part No.

Tube O.D.
T mm
E
mm

h mm

H mm
F
G
l
L
VE-M02 2 1.7 9.5 12 12.9 15.3 15.7 22.3
VE-M03 3 2.4 9.5 12 12.9 15.3 15.7 22.3
VE-M04 4 2.4 12.7 12 13.7 16.1 18.8 25.4
VE-M06 6 4.8 12.7 14 15.3 17.7 19.6 27.0
VE-M08 8 6.4 14.3 16 16.2 18.6 21.3 28.8
VE-M10 10 7.9 17.5 19 17.2 19.5 23.9 31.5
VE-M12 12 9.5 20.6 22 22.8 22.0 25.9 36.0
VE-M15 15 11.9 25.4 25 24.4 22.0 28.7 38.8
VE-M16 16 12.7 25.4 25 24.4 22.0 28.7 38.8
VE-M18 18 15.1 27.0 30 24.4 22.0 29.7 39.8
VE-M20 20 15.9 31.8 32 26.0 22.0 32.5 42.6
VE-M22 22 18.3 31.8 32 26.0 22.0 32.5 42.6
VE-M25 25 21.8 36.0 38 31.3 26.5 36.8 49.1
